#9120523

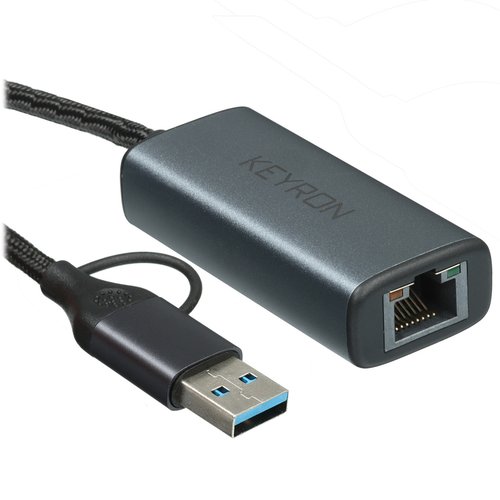

Network card KEYRON KNA-25AC
[1 x RJ-45, 1000 Mb/s, 100 Mb/s, 10 Mb/s, 2.5 Gbit/s, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-С] details
Not on sale
Accessories
Characteristics Network card KEYRON KNA-25AC
General characteristics
Type
network card
Model
KEYRON KNA-25AC
Color
gray
Data Transfer Rate
2.5 Gbit/s, 10 Mb/s, 1000 Mb/s, 100 Mb/s
Chip
Realtek RTL8156B
Connection
RJ-45 Connector Count
1
Number of SFP Ports
0
Optical Connectors
0
Interface
USB 3.2 Gen 1 Type-С, USB 3.2 Gen 1 Type-A
Connection Port Adapter
yes
Standard Support
Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Support For Wake-on-LAN
none
Interrupt Сoalescing
yes
Support For Jumbo Frame
none
TCP Checksum Offload
yes
TCP Segmentation
yes
Additional Information
Auto MDI/MDIX Detection
yes
Supported Operating Systems
Microsoft Windows 7, Linux, macOS, Microsoft Windows 10, Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 8
Operating Temperature
from 0º to +50 °C
Additional Information
cable length 20.6 cm, aluminum case
Dimensions
Length
62.6 mm
Width
27.8 mm
Height
16 mm
Description
The KEYRON KNA-25AC network adapter in an aluminum casing is compatible with almost any mobile and desktop computers thanks to the presence of USB-A and USB-C connectors. The USB 3.0 interface is used for data exchange with the PC. Four basic data transfer speeds are supported – 10 Mbps, 100 Mbps, 1000 Mbps, and 2.5 Gbps. Network equipment connects to the RJ-45 connector. Thanks to automatic MDI/MDIX detection, the model is designed to connect with any Ethernet cables.
The KEYRON KNA-25AC network adapter supports the TCP Checksum Offload feature. The device independently checks the correctness of network data packet transmission and reduces CPU load. The TCP Segmentation Offload feature also saves CPU resources: the model performs packet segmentation at the hardware level and improves data transmission stability.
The network adapter is supported by Linux, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, and macOS operating systems. The device is equipped with a 206 mm long cable. The network adapter is powered via USB and does not require additional power sources. The device is designed for operation at positive temperatures up to 50 °C.
The KEYRON KNA-25AC network adapter supports the TCP Checksum Offload feature. The device independently checks the correctness of network data packet transmission and reduces CPU load. The TCP Segmentation Offload feature also saves CPU resources: the model performs packet segmentation at the hardware level and improves data transmission stability.
The network adapter is supported by Linux, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, and macOS operating systems. The device is equipped with a 206 mm long cable. The network adapter is powered via USB and does not require additional power sources. The device is designed for operation at positive temperatures up to 50 °C.
