PC Builder 🎮
CPU Intel Core i7-14700KF OEM

#5436622

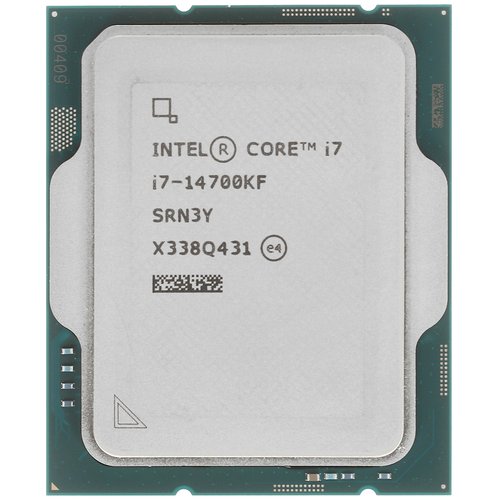

CPU Intel Core i7-14700KF OEM

[LGA 1700, 8P x 3.4 GHz, 12E x 2.5 GHz, L2 - 28 MB, L3 - 33 MB, 2 х DDR4, DDR5-5600 MHz, TDP 253 W] details

4.88 | 811
Good reliability

Not on sale

Accessories

  • Characteristics
  • Feedback 811
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics CPU Intel Core i7-14700KF OEM

General parameters

Model
Intel Core i7-14700KF
Socket
LGA 1700
Manufacturer Code
[CM8071504820722]
Release Year
2023
Cooling System Included
none
Thermal Interface Material Included
none

Core and Architecture

Total Number of Cores
20
Number of Performance Cores
8
Number of Efficiency Cores
12
Max CPU Threads
28
L2 Cache Size
28 MB
L3 Cache Size
33 MB
Technical Process
Intel 7
Core
Intel Raptor Lake-R

Frequency and Overclocking Capability

CPU Base Clock
3.4 GHz
Max Turbo Boost Clock
5.6 GHz
Efficient Cores Base Clock
2.5 GHz
Efficient Cores Turbo Clock
4.3 GHz
Unlocked Multiplier
yes

RAM Parameters

Memory Type
DDR4, DDR5
Max RAM Memory Support
192 GB
Channel Count
2
RAM Frequency
DDR4-3200, DDR5-5600
ECC Mode Support
yes

Thermal characteristics

Thermal Design Power (TDP)
253 W
Base Thermal Design Power (TDP Rating)
125 W
Max CPU Temperature
100 °С

Graphics Core

Integrated Graphics
none

Bus and Controllers

Integrated PCIe Controller
PCIe 5.0
PCIe Lane Count
20 pcs

Additional Information

Virtualization
yes
Features, Additional
Intel GNA technology

Description

The Intel Core i7-14700KF OEM processor is equipped with a total of 20 computing cores, 8 of which are performance cores and 12 are efficient cores. This component can be used when building a home workstation or a gaming system unit. You can install it on a motherboard equipped with an LGA1700 socket. With a base clock speed of 3.4 GHz, the CPU supports turbo mode, boosting the clock frequency up to 5.6 GHz.
The maximum heat dissipation of the Intel Core i7-14700KF CPU is 253 W, requiring an efficient cooling system to optimize operating temperatures. A compatible cooler is not included in the package, allowing you to select this module separately. The CPU design does not include an integrated graphics core.
