PC Builder 🎮
PC case MONTECH XR [XR (B)] black

#5459078

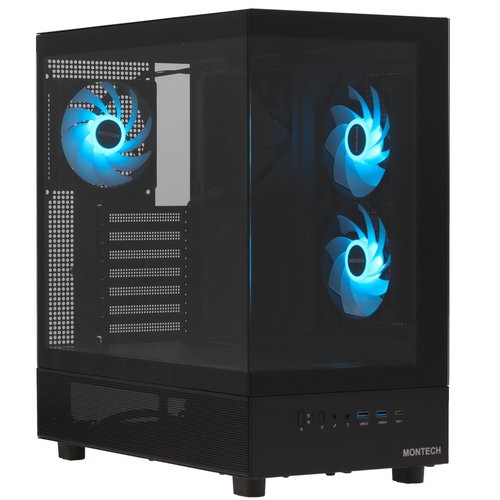

PC case MONTECH XR [XR (B)] black

[Mid-Tower, Micro-ATX, Mini-ITX, Standard-ATX, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C, ARGB fans, 3 x 120 mm] details

4.85 | 501
Excellent reliability

Not on sale

Accessories

  • Characteristics
  • Feedback 501
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics PC case MONTECH XR [XR (B)] black

General parameters

Type
PC case
Model
MONTECH XR
Manufacturer Code
[XR (B)]

Form Factor and Dimensions

Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
435 mm
Width
230 mm
Height
450 mm

Appearance

Main Color
black
Housing Material
steel, glass
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
tempered glass
LCD Screen
none
Backlight Type
ARGB
Light Source
fan
Backlight Connector
3 pin 5V-D-G (ARGB)

Compatibility

Compatible Board Form Factor
Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
lower
Hidden Power Supply
yes
Max Power Supply Length
230 mm
Horizontal Expansion Slots
7
Vertical Expansion Slots
0
Max GPU Length
420 mm
Max CPU Cooler Height
175 mm
Number of 2.5" Drive Bays
2 pcs
Number of 3.5" Drive Bays
2 pcs
Number of 2.5"/3.5" Drive Bays
0 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs

Cooling

Fans Included
3 x 120 mm
Front Fan Support
none
Rear Fan Support
1 x 140 or 1 x 120 mm
Top Fan Support
2 x 140 or 3 x 120 mm
Bottom Fan Support
3 x 120 mm
Side Fan Support
2 x 120 mm
Liquid Cooling Support
yes
Liquid Cooling Radiator Top Mounting Size
140 mm, 120 mm, 240 mm, 360 mm
Rear Mounting Size for AIO Radiator
140 mm, 120 mm

Front Panel Connectors and Interfaces

I/O Panel Location
front
USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 1
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Built-In Card Reader
none

Maintenance

Side Panels Locks
rear screws
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
top, bottom, side (right)

Additional Information

Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
fastener kit

Description

Революционный корпус с панорамным обзором, органично объединяющий материнские платы ATX, системы жидкого охлаждения и видеокарты высокого класса. Созданный на основе флагманской серии Sky, XR предлагает панорамный вид в компактном пространстве, меняя представление об игровых установках. Его инновационный дизайн обеспечивает максимальную визуальную привлекательность и минимальную занимаемую площадь, сочетая в себе переднюю панель ввода-вывода в стиле Wood-Grain.
