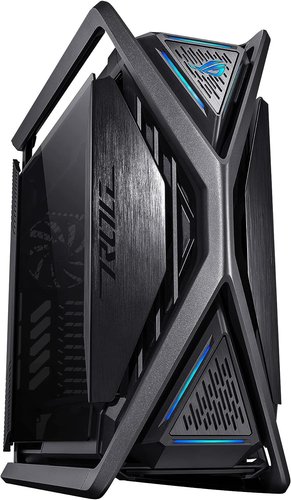

PC case ASUS ROG Hyperion GR701 [90DC00F0-B39000] black

#5437436

PC case ASUS ROG Hyperion GR701 [90DC00F0-B39000] black

[Full-Tower, E-ATX, Micro-ATX, Mini-ITX, Standard-ATX, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2x2 Type-C, ARGB, 4 x 140 mm] details

4.91 | 33

Not on sale

Accessories

  • Characteristics
  • Feedback 33

Characteristics PC case ASUS ROG Hyperion GR701 [90DC00F0-B39000] black

General parameters

Type
PC case
Model
ASUS ROG Hyperion GR701
Manufacturer Code
[90DC00F0-B39000]

Form Factor and Dimensions

Housing Size Standard
Full-Tower
Motherboard Orientation
vertical
Depth
639 mm
Width
268 mm
Height
659 mm
Weight
20.8 kg

Appearance

Main Color
black
Housing Material
steel, aluminium, glass, plastic
Side Panel Window
both sides
Window Material
tempered glass
Front Panel Material
steel, aluminium
LCD Screen
none
Backlight Type
ARGB
Light Source
housing elements
Backlight Connector
3 pin 5V-D-G (ARGB)
Backlight Control Method
button on the case, ASUS AURA

Compatibility

Compatible Board Form Factor
E-ATX, Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
lower
Hidden Power Supply
yes
Max Power Supply Length
240 mm
Horizontal Expansion Slots
9
Vertical Expansion Slots
3
Max GPU Length
460 mm
Max CPU Cooler Height
190 mm
Number of 2.5" Drive Bays
5 pcs
Number of 3.5" Drive Bays
0 pcs
Number of 2.5"/3.5" Drive Bays
2 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs

Cooling

Fans Included
4 x 140 mm
Front Fan Support
3 x 140 or 3 x 120 mm
Rear Fan Support
1 x 140 or 1 x 120 mm
Top Fan Support
3 x 140 or 3 x 120 mm
Bottom Fan Support
none
Side Fan Support
none
Liquid Cooling Support
yes
Front Mounting Size for AIO Radiator
280 mm, 140 mm, 120 mm, 240 mm, 420 mm, 360 mm
Liquid Cooling Radiator Top Mounting Size
280 mm, 140 mm, 120 mm, 240 mm, 420 mm, 360 mm
Rear Mounting Size for AIO Radiator
140 mm, 120 mm

Front Panel Connectors and Interfaces

I/O Panel Location
front
USB Type-A Ports
4 x USB 3.2 Gen 1
USB Type-C Ports
2 x USB 3.2 Gen 2x2
Audio Connectors
3.5mm jack (audio/mic)
Built-In Card Reader
none

Maintenance

Side Panels Locks
magnets, hinges (opens like a door)
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
top, bottom, front

Additional Information

Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
documentation, fastener kit, screwdriver, USB port plugs x 4 pcs, graphics card mounting bracket
Features
quick charge support, cast aluminum frame

Description

ASUS ROG Hyperion GR701 [90DC00F0-B39000] case in black color with Republic of Gamers design created for building a powerful gaming system. The model form factor is Full-Tower with dimensions 659x268x639 mm accommodating a pair of 420-millimetre liquid cooling radiators. The wide front panel air intakes increase heat dissipation efficiency. The case ships with 4 140 mm fans with support for automatic fan speed control. In the front part of the unit, next to the motherboard, there is free space for placing several 2.5-inch SSDs or HDDs, a liquid cooling distribution panel, decorative ROG light panel, or other components.
The ASUS ROG Hyperion GR701 [90DC00F0-B39000] case is compatible with video adapters up to 460 mm in length. Supports motherboards of 4 form factors – E-ATX, Micro-ATX, Mini-ITX and Standard-ATX. The height of the CPU cooler is limited to 190 mm. On the front panel there are 2 USB Type-C ports with fast charging support up to 60 W when using a compatible ASUS ROG motherboard.
