#5091704

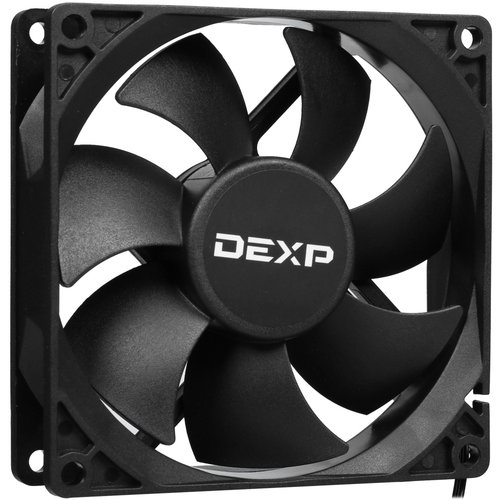

Fan DEXP DX92NFDB black
[92 x 92 mm, 3 pin, 1800 RPM - 1800 RPM, - 23 dB, included - 1] details
Not on sale
Characteristics Fan DEXP DX92NFDB black
General parameters
Type
fan
Model
DEXP DX92NFDB
Number of Fans Included
1
Appearance
Frame Color
black
Fanblades Color
black
Backlight Type
none
Design
Fan Size
92 x 92 mm
Fan Thickness
25 mm
Bearing Type
slip (hydrodynamic)
Anti-Vibration Pad
none
Technical specifications
Max RPM
1800 RPM
Minimum Rotational Speed
1800 RPM
Air Flow At Max Speed
38.8 CFM
Max Static Pressure
15.7 Pa
Max Noise Level
23 dB
Power and Connection
Fan Power Connector Type
3 pin
Speed Control
none
Rated Voltage
12 V
Max Current
100 mA
Backlight Power Connector Type
none
Adapters Included
none
Hub Controller Included
none
Remote Control Included
none
Cable Length
280 mm
Additional Information
Package Contents
fastener kit
Description
Fan DEXP DX92NFDB [DX92NFDB] with a black chassis and blade finish is designed for mounting in the computer case window and solves the task of removing heated air from heat-loaded components of the assembly. The 92x92x25 mm case fan is intended to rotate at a constant speed of 1800 RPM, generating an airflow of 38.8 CFM.
For connecting the PC cooling air system component a 3-pin connector is used. Connecting the fan to a 12 V supply rail is achieved via a 280 mm cable.
The DEXP DX92NFDB [DX92NFDB] case fan creates no more than 23 dB of noise during operation and can be used in a silent build. Included with mounting hardware, the fan is equipped with a hydrodynamic sliding bearing for long trouble-free operation.
For connecting the PC cooling air system component a 3-pin connector is used. Connecting the fan to a 12 V supply rail is achieved via a 280 mm cable.
The DEXP DX92NFDB [DX92NFDB] case fan creates no more than 23 dB of noise during operation and can be used in a silent build. Included with mounting hardware, the fan is equipped with a hydrodynamic sliding bearing for long trouble-free operation.
