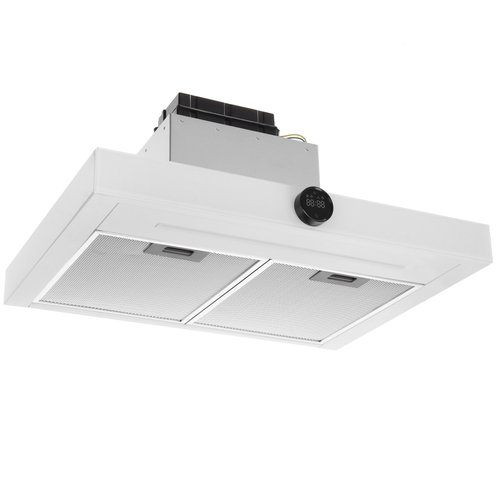

Exhaust hood fireplace Eigen Wien white

#9202568

Exhaust hood fireplace Eigen Wien white

[600 m³/h, 120 W, modes - diversion/circulation, width - 60 cm] details

1 490 000 UZS
Buy
Avail in 2 shops
Color
Warranty: 36 mos.
  • Characteristics
  • Feedback 11
  • Instructions and files

Characteristics Exhaust hood fireplace Eigen Wien white

General parameters

Type
exhaust hood
Design
fireplace
Model
Eigen Wien
Main Color
white
Border/Trim Color
none
Color as Stated by Manufacturer
white
Housing Material
glass, metal
Panel/Trim/Rail Material
none

Basic characteristics

Operating Modes
diversion/circulation
Max Performance
600 m³/h
Performance
600 m³/h (free air flow)
Energy Efficiency Rating
C
Number of Motors
1
Filter Included
grease
Noise Level
64 dB

Power

Motor Power
120 W
Power Consumption
123 W
Power Supply Voltage
220-240 V / 50 Hz
Sleep Mode Power Consumption
0.5 W
Standby Power Consumption
0 W
Power Cable Length
1.5 m

Control

Control Type
rotary knob
Speed Settings
3
Display
yes
Timer
yes
Turbo Airflow Mode
yes
Interval Mode
none
Remote Control
none

Lighting

Lighting Type
LED lamp
Number of Lighting Bulbs
1 pcs
Power Per Lamp
3 W
Lighting Brightness Adjustment
none

Additional Information

Decorative Chimney
yes
Non-Return Valve
yes
Shock Absorber
none
Change Indicator
none
Compatible Filters
Top House TH F 130, Top House TH CFI, Aceline KH-N1, Aceline KH-CF2, Aceline KH-C1, Top House TH F 130i
Extra
carbon filter sold separately

Built-in Dimensions

Cutout Width
60 cm
Minimum Installation Height
46 cm
Installation Depth
45 cm
Duct Diameter
15 cm
Minimum Clearance Above Electric Cooktop
65 cm
Minimum Clearance Above Hob Panel
65 cm

Dimensions and Weight

Width
60 cm
Depth
45 cm
Range Hood Weight
7.5 kg
Package Width
66 cm
Package Height
51.5 cm
Packaging Depth
35.5 cm
Packaged Weight
10.1 kg

Description

Eigen Wien white fireplace hood operates in exhaust/recirculation mode. The unit connects to the central ventilation system, through which smoke and unwanted odors are vented. Such a system cleans the entire air in the room and exhausts it outdoors. Airflow is 600 m³/h. This allows the model to be used in rooms of 15–20 m². The grease filter captures soot, vapors, and other contaminants. Thanks to it, dirt does not accumulate on the motor and the fan. This extends the service life of the equipment. Additionally, an activated carbon filter can be installed. It will help purify the air from odors and fine particles that were not stopped by the other barrier. The Eigen Wien fireplace hood supports 3 speeds. You can change the suction speed depending on the intensity of the flame and the amount of smoke emitted. With a 99-minute timer you can set the automatic shut-off time for the hood. The lighting provides illumination of the area around the fireplace. The model has an anti-backflow valve. It prevents cold air from entering the room through the ventilation.
