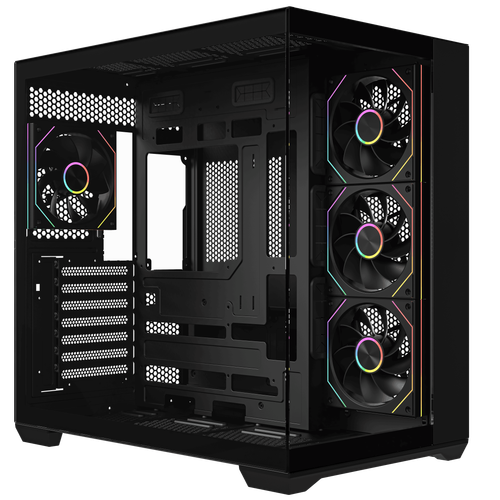

Characteristics PC case ARDOR GAMING Crystal CQ black
General parameters
Type
PC case
Model
ARDOR GAMING Crystal CQ
Form Factor and Dimensions
Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
443 mm
Width
277 mm
Height
435 mm
Weight
7.13 kg
Appearance
Main Color
black
Housing Material
steel, glass, plastic
Metal Sheet Thickness
0.7 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
steel, tempered glass
LCD Screen
none
Backlight Type
ARGB
Light Source
fan
Backlight Connector
3 pin 5V-D-G (ARGB)
Backlight Control Method
button on the case, MSI MYSTIC LIGHT, GIGABYTE RGB FUSION, ASUS AURA
Compatibility
Compatible Board Form Factor
E-ATX, Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
Standard-ATX, Micro-ATX
Power Supply Form Factor
ATX
Power Supply Placement
behind the motherboard
Hidden Power Supply
yes
Max Power Supply Length
240 mm
Horizontal Expansion Slots
7
Vertical Expansion Slots
7
Max GPU Length
420 mm
Max CPU Cooler Height
155 mm
Number of 2.5" Drive Bays
3 pcs
Number of 3.5" Drive Bays
2 pcs
Number of 2.5"/3.5" Drive Bays
0 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs
Cooling
Fans Included
4 x 120 mm
Front Fan Support
none
Rear Fan Support
1 x 120 mm
Top Fan Support
2 x 140 or 3 x 120 mm
Bottom Fan Support
2 x 140 or 3 x 120 mm
Side Fan Support
3 x 120 mm
Liquid Cooling Support
yes
Liquid Cooling Radiator Top Mounting Size
280 mm, 240 mm, 360 mm
Rear Mounting Size for AIO Radiator
120 mm
Side Radiator Mounting Dimensions for Liquid Cooling
120 mm, 240 mm, 360 mm
Front Panel Connectors and Interfaces
I/O Panel Location
top
USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 2
Audio Connectors
3.5mm jack (audio/mic)
Built-In Card Reader
none
Maintenance
Side Panels Locks
rear screws
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
top, bottom, side (right)
Additional Information
Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
documentation, fastener kit
Features
includes 3 reverse fans
Description
ARDOR GAMING Crystal CQ black 'Aquarium' finish case designed for assembling a gaming or productive universal PC for home or office. The model is equipped with four ARGB-lit fans. Its principal advantage is the ability to display different colors simultaneously. The lighting can be controlled with a button or via ASUS AURA, GIGABYTE RGB FUSION and MSI MYSTIC LIGHT software. Three of the four fans are reversible. Their front sides face inward toward the device.
The side window and the front panel of the ARDOR GAMING Crystal CQ are made of tempered glass. On the top I/O panel there is a universal audio jack and 3 USB ports – Type-C and 2 Type-A. Dust protection is provided by dust filters on the right, top and bottom.
The case is compatible with motherboards of four form factors – E-ATX, Micro-ATX, Mini-ITX and Standard-ATX. Support for graphics cards up to 420 mm in length is allowed. CPU cooler height is limited to 155 mm. It is possible to install a liquid cooling system with a radiator mounting size not exceeding 360 mm. The case is shipped without a power supply. The user will need a PSU with ATX form factor up to 240 mm in length.
