PC ARDOR GAMING NEO M163

#5613721

PC ARDOR GAMING NEO M163

[Intel Core i5-12400F, 6 x 2.5 GHz, 16 GB DDR4, GeForce RTX 3050, SSD 1000 GB, no OS, 1 x DisplayPort, 1 x DVI-D, 1 x HDMI, Intel H610, power supply - 500 W] details

4.96 | 46
Good reliability

Not on sale

Accessories

  • Characteristics
  • Feedback 46
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics PC ARDOR GAMING NEO M163

General parameters

Type
PC
Model
ARDOR GAMING NEO M163
Series
ARDOR GAMING NEO
Part of Russian Industrial Registry
none
Housing form Factor
Mini-Tower
Body Color
black

Software

Operating System
no OS

Processor

CPU Model
Intel Core i5-12400F
Total Number of Cores
6
Number of Performance Cores
6
Number of Efficiency Cores
0
Number of Threads
12
Base Clock for Performance Cores
2.5 GHz
Max Performance Core Frequency
4.4 GHz
Efficient Cores Base Clock
0 GHz
Efficiency Core Max Clock Speed
0 GHz

Motherboard

Socket
LGA 1700
Chipset
Intel H610
Number of RAM Slots
2

RAM

RAM Type
DDR4
RAM Form Factor
DIMM
RAM Frequency
3200 MHz
Number of Installed Modules
2
Total RAM
16 GB

Video Card

GPU Type
discrete
Integrated GPU Model
none
Discrete GPU Model
GeForce RTX 3050
Video Memory Type
GDDR6
Video Memory Size
8 GB

Data storage devices

Solid State Drive (SSD) Configuration
1 TB M.2 PCIe
Hard Drive (HDD) Configuration
none

Front Panel Connectors

USB Type-A Ports
1 x USB 3.2 Gen 1, 2 x USB 2.0
USB Type-C Ports
none
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Card Reader
none
Optical Drive
none

Connectors

Rear Panel USB Type-A Ports
4 x USB 2.0, 2 x USB 3.2 Gen 1
Rear Panel USB Type-C Ports
none
Video Ports
1 x HDMI, 1 x DVI-D, 1 x DisplayPort
Video Connector Version
HDMI 2.1, DisplayPort 1.4a
Analog Audio Connector Count
3
Other Peripheral Ports
PS/2 (combo)

Internet/Data Transfer

Network Adapter Speed
1 Gbit/s
Wi-Fi Standard
none
Bluetooth Version
none

Additional Information

Side Panel Window
yes
Power Supply Wattage
500 W
Keyboard and Mouse Included
none
Features
power supply 80 PLUS Standard

Dimensions

Length
388 mm
Width
200 mm
Height
423 mm

Configuration

Processor
Intel Core i5-12400F
Motherboard
MSI PRO H610M-E DDR4
RAM
8GB ADATA XPG SPECTRIX D41 3200MHz
RAM Stick Count
2 pcs
Graphics Card
MSI GeForce RTX 3050 VENTUS 2X XS OC 8GB
SSD Storage
1TB M.2 NVMe MSI SPATIUM M450
CPU Cooling
DEEPCOOL AG300 (Design for ARDOR GAMING)
Power Supply
GamerStorm DN500 500W (80+ Standard)
Case
MSI MAG FORGE M100R (Design for ARDOR GAMING)

Description

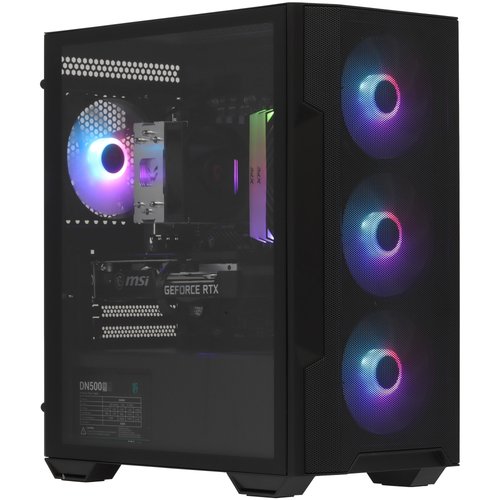

PC ARDOR GAMING NEO M163 is equipped with productive components – an Intel Core i5-12400F processor, a discrete GeForce RTX 3050 graphics card, and RAM sticks totaling 16 GB. The entry-level gaming system unit designed to run undemanding video games is assembled in a black case with a large-area glass panel on the side wall. The computer is delivered without pre-installed software, so to start using it you will need to install an OS.
The main memory module in the gaming PC ARDOR GAMING NEO M163 is the M.2 PCIe storage device, capable of holding up to 1000 GB of data. It works as a logical drive and a means of storing media, applications, and documents. All users of the build receive DC power from the standard PSU, whose energy efficiency level corresponds to the 80 PLUS Standard.
